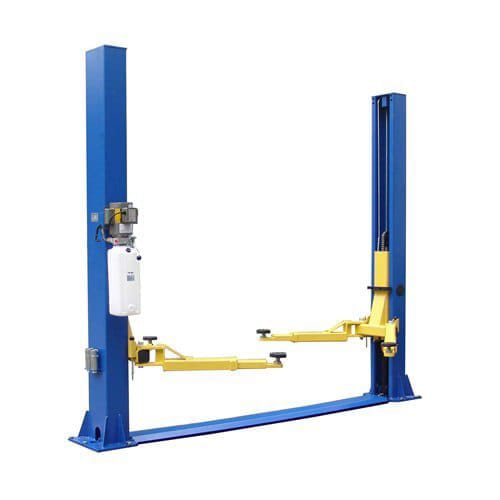

| Type | Two Post Base Plate Lift (Floor-Plate Type) |
| Lifting Capacity | 4 Ton (4000 kg) |
| Lift Type | Hydraulic |
| Lifting Height | 1800 mm to 1900 mm |
| Minimum Height | 100 mm |
| Column Height | Approx. 2800 mm |
| Drive Through Width | 2500 mm – 2700 mm (varies by model) |
| Total Width | 3400 mm – 3500 mm |
| Arm Type | 2-stage/3-stage telescopic arms (manual locking) |
| Motor Power | 2.2 – 3.0 kW |
| Power Supply | 220V Single Phase / 380V Three Phase (Optional) |
| Lifting Time | 50 – 60 seconds |
| Safety Locks | Mechanical locking with automatic engagement |
| Synchronization | Steel cable synchronization |
| Oil Requirement | 10-12 Litres (Hydraulic Oil – ISO 32/46) |
| Weight of Lift | Approx. 600–700 kg |
| Base Plate Thickness | 10 mm or more |
| Applications | Passenger Cars, SUVs, Light Commercial Vehicles |
