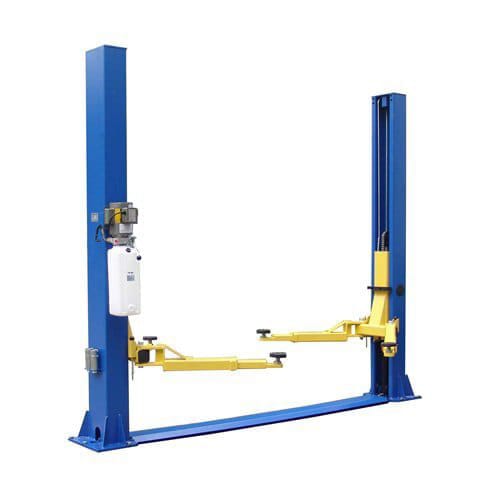

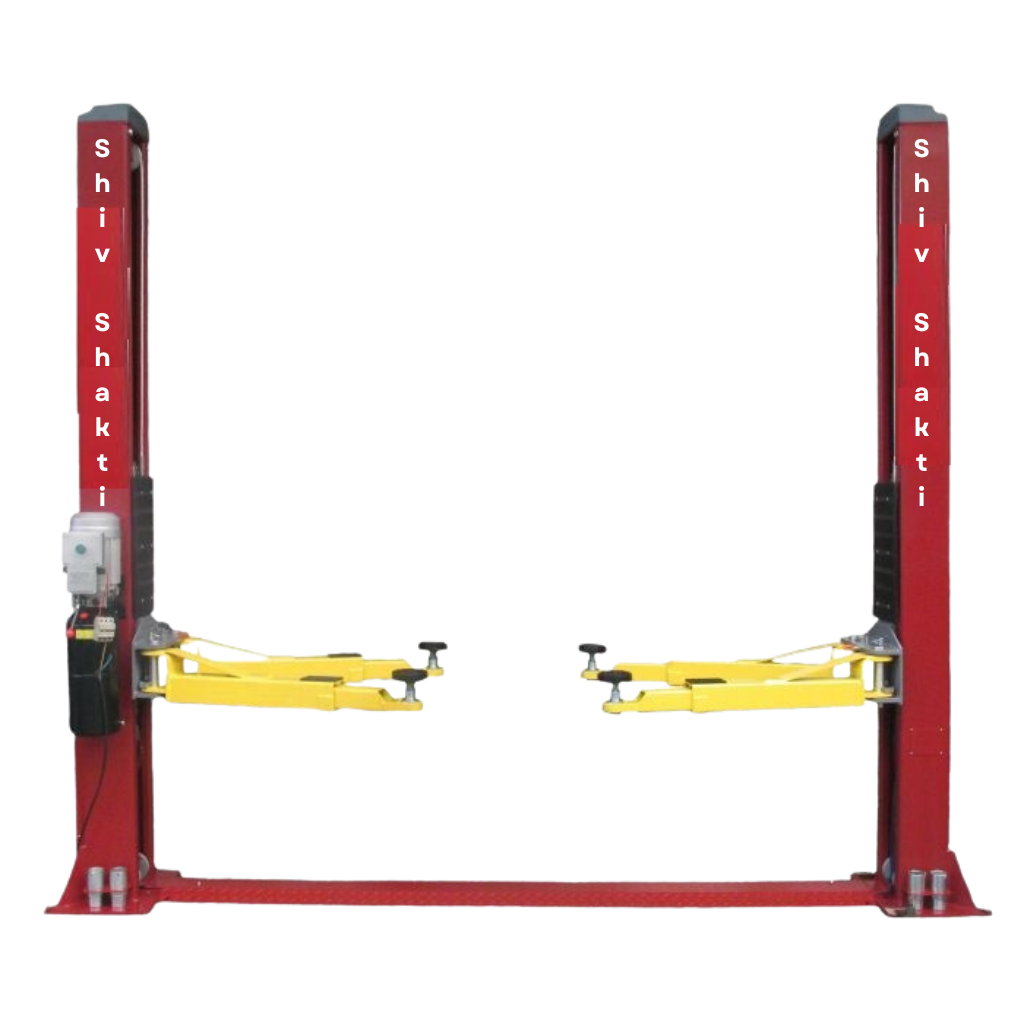

Base floor lift
| Feature | Specification |
|---|---|
| Type | Two Post Base Plate Lift (Floor-Plate Type) |
| Lifting Capacity | 4 Ton (4000 kg) |
| Lift Type | Hydraulic |
| Lifting Height | 1800 mm to 1900 mm |
| Minimum Height | 100 mm |
| Column Height | Approx. 2800 mm |
| Drive Through Width | 2500 mm – 2700 mm (varies by model) |
| Total Width | 3400 mm – 3500 mm |
| Arm Type | 2-stage/3-stage telescopic arms (manual locking) |
| Motor Power | 2.2 – 3.0 kW |
| Power Supply | 220V Single Phase / 380V Three Phase (Optional) |
| Lifting Time | 50 – 60 seconds |
| Safety Locks | Mechanical locking with automatic engagement |
| Synchronization | Steel cable synchronization |
| Oil Requirement | 10-12 Litres (Hydraulic Oil – ISO 32/46) |
| Weight of Lift | Approx. 600–700 kg |
| Base Plate Thickness | 10 mm or more |
| Applications | Passenger Cars, SUVs, Ligh |

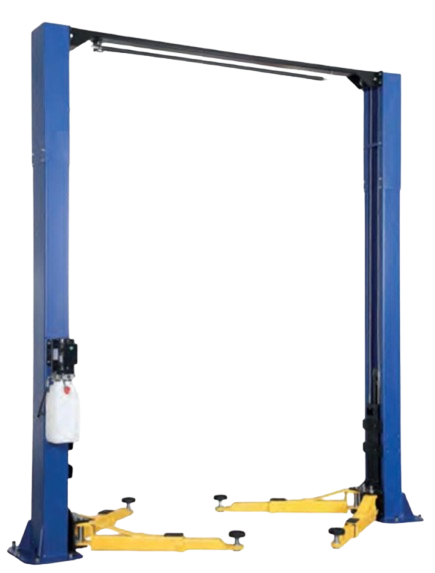

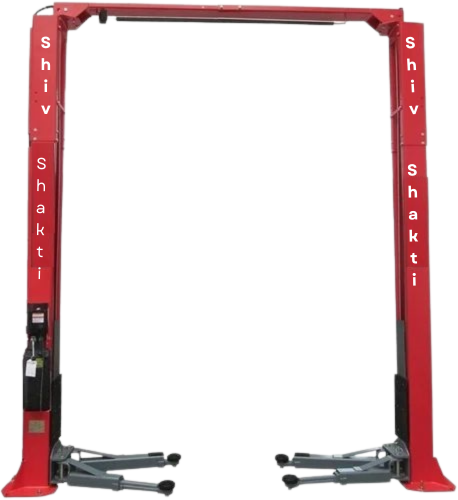

Clear Floor Two Post Lift
| Feature | Specification |
|---|---|
| Type | Two Post Clear Floor Lift (Overhead Type) |
| Lifting Capacity | 4 Ton (4000 kg) |
| Lift Type | Hydraulic |
| Lifting Height | 1800 mm to 1900 mm |
| Minimum Pad Height | 100 mm – 110 mm |
| Column Height | Approx. 3600 mm – 3800 mm |
| Overhead Beam Height | Approx. 4500 mm (adjustable in some models) |
| Drive Through Width | 2500 mm – 2700 mm |
| Total Width | 3400 mm – 3500 mm |
| Arm Type | 2-stage or 3-stage telescopic arms |
| Motor Power | 2.2 – 3.0 kW |
| Power Supply | 220V Single Phase / 380V Three Phase (Optional) |
| Lifting Time | 50 – 60 seconds |
| Safety Locks | Automatic mechanical locks |
| Synchronization | Steel wire rope or hydraulic balance |
| Oil Requirement | 10-12 Litres (Hydraulic Oil ISO 32/46) |
| Weight of Lift | Approx. 650–750 kg |
| Column Thickness | 5 – 6 mm (high-strength steel) |
| Applications | Passenger Cars, SUVs, Light Commercial Vehicles |
✅ Key Features
- No floor plate – full access under the car
- Ideal for transmission and exhaust work
- Automatic safety lock with release lever
- Arm restraints and rubber pad adapters included
- Powder-coated finish for rust protection
- Heavy-duty symmetric or asymmetric arms available
