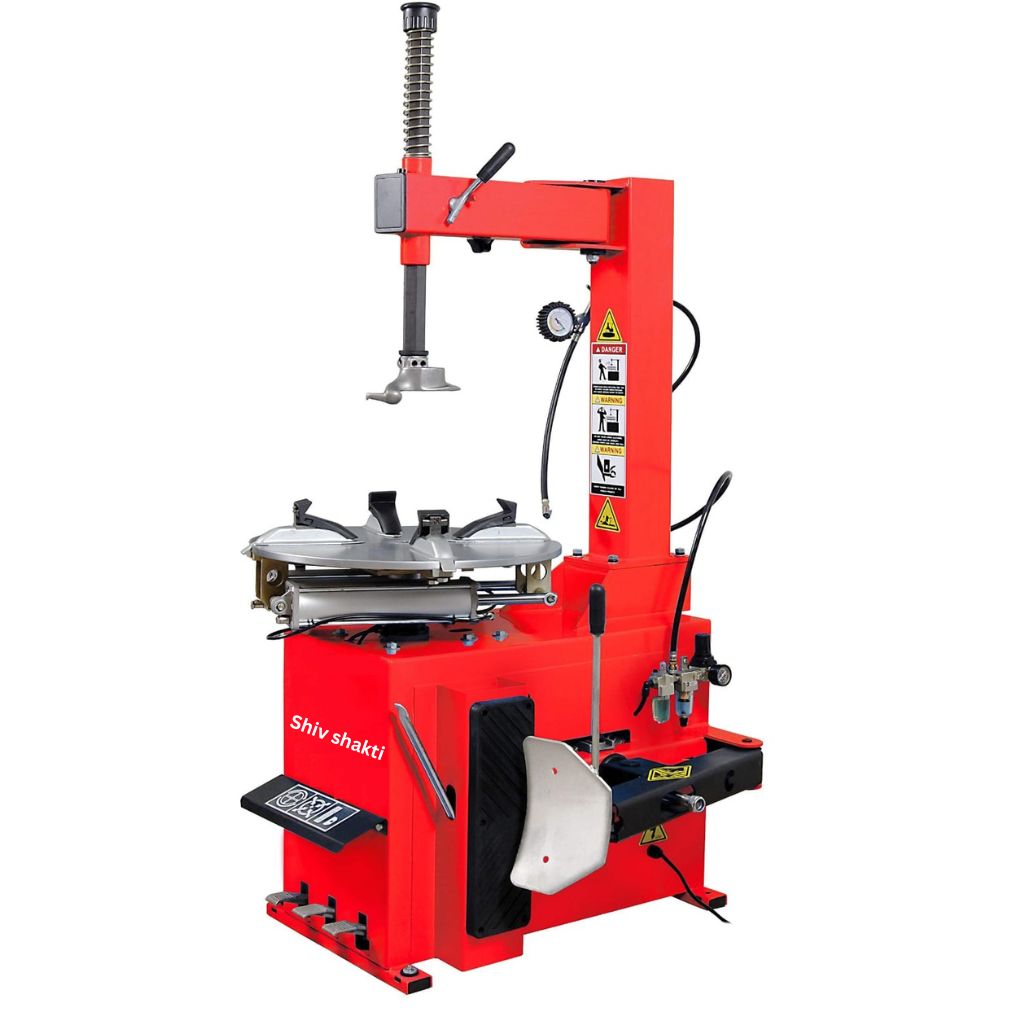

Tyre changer
Our Tyre Changer Machine is specially designed for quick and effortless removal and fitting of tyres on cars, SUVs, and light commercial vehicles. Built with a robust body and user-friendly controls, this machine is ideal for any modern garage, tyre shop, or service station.
Whether you’re handling tubeless tyres or low-profile performance tyres, our machine ensures smooth, damage-free operation every time.
Key Features:
- ✅ Rim Clamping System:
Pneumatic clamping from inside & outside for rims ranging 10” to 24” (varies by model) - ✅ Powerful Bead Breaker:
Breaks even the toughest tyre beads effortlessly with a pressure of 2500–3000 kg - ✅ Tilt-Back or Swing Arm Design:
For easy mounting/unmounting of tyres (model dependent) - ✅ Assist Arm (Optional):
For run-flat and low-profile tyres, preventing damage to alloy wheels - ✅ User-Friendly Foot Pedals:
Operate all functions with precision using strong and responsive foot pedals - ✅ Heavy-Duty Turntable:
Powder-coated, corrosion-resistant table for long life and grip
Technical Specifications:
| Parameter | Specification |
|---|---|
| Rim Diameter | 10” – 24” |
| Max Tyre Width | Up to 14” (model dependent) |
| Operating Pressure | 8–10 bar (via Air Compressor) |
| Bead Breaker Force | 2500–3000 kg |
| Motor Power | 0.75 – 1.1 kW |
| Power Supply | 220V Single Phase |
| Optional Accessories | Helper Arm, Inflation Gauge, Tyre Inflator Gun |
Why Choose Our Tyre Changer?
- Suitable for Tubeless, Run-flat, and Alloy Wheels
- Rugged Build – Designed for Indian Garage Conditions Quick Operation = More Cars Serviced Daily
- Spare Parts & Full After-Sales Support Available
- Easy to Maintain & Long Life Performance
Applications:
- Car & SUV Tyre Shops
- Multi-brand Service Centers
- Dealership Workshops
- Petrol Pump Garages

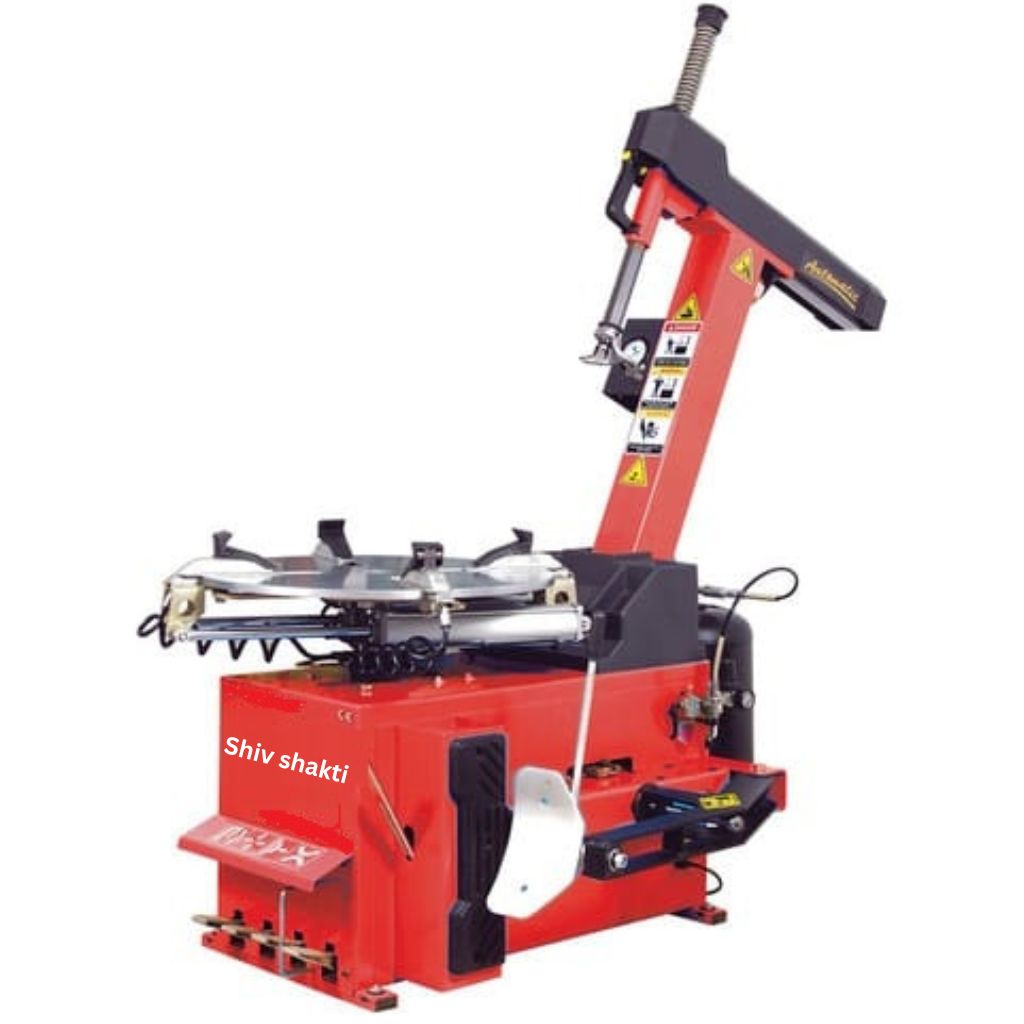

Tilt Tyre changer
A Tilt Back Tyre Changer offers automatic operation with a hydraulic tilt-back column, providing greater convenience, speed, and safety while changing tyres — especially for alloy wheels, run-flat tyres, and low-profile tyres.
Technical Specifications:
| Parameter | Specification |
|---|---|
| Rim Clamping Range | Inside: 13”–26” / Outside: 11”–24” |
| Max Tyre Diameter | 1100 mm (43 inches) |
| Max Tyre Width | Up to 15 inches (380 mm) |
| Tilt-Back Column | Pneumatically operated for easy access |
| Bead Breaker Force | 2800 – 3000 kg |
| Operating Pressure | 8 – 10 bar (via air compressor) |
| Motor Power | 0.75 – 1.1 kW |
| Turntable Rotation Speed | 6 – 10 RPM (Single / Dual Speed Options) |
| Power Supply | 220V / 50Hz (Single Phase) or 380V (Three Phase) |
| Noise Level | < 70 dB |
| Net Weight | 220 – 280 kg (varies by model) |
Key Features:
- Tilt-Back Tower Design:
Push-button tilt-back column for fast positioning and greater workspace. - Powerful Bead Breaker:
Side-mounted pneumatic bead breaker easily handles tight or old tyres. - Heavy-Duty Turntable:
Corrosion-resistant table with self-centering jaws for firm grip. - Assist Arm Ready (Optional):
Can be fitted with helper arm for run-flat and low-profile tyres. - Alloy Wheel Friendly Tools:
Equipped with plastic protectors to prevent rim scratches. - Foot Pedal Operation:
Smooth and responsive controls for lifting, clamping, and rotating.
🚗 Ideal For:
- Car & SUV Tyre Shops
- Premium Car Service Centers
- Automotive Dealerships
- High-Volume Garages

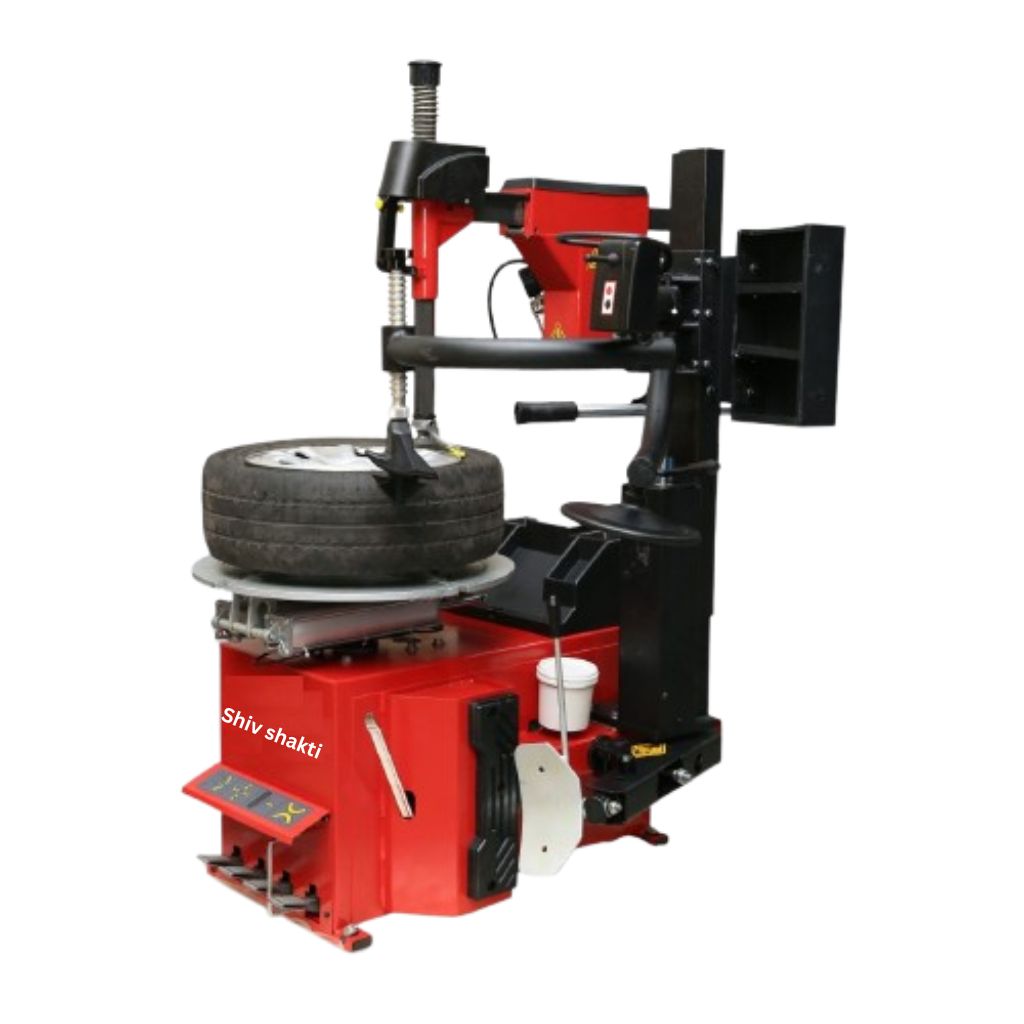

Rft Tyre Changer
The RFT Tyre Changer is a heavy-duty, assist-arm equipped machine designed specifically for Run Flat Tyres (RFT) and modern low-profile tyres, often found in premium and high-performance vehicles. These tyres are tough and require specialized equipment to avoid rim damage and ensure technician safety.
Technical Specifications:
| Feature | Specification |
|---|---|
| Rim Clamping Range | Inside: 13″ – 26″ / Outside: 11″ – 24″ |
| Maximum Tyre Width | Up to 15″ (380 mm) |
| Maximum Tyre Diameter | 1100 mm (43″) |
| Bead Breaker Force | 3000 – 3500 kg |
| Assist Arm | Standard – Pneumatic operated for pressing/support |
| Turntable Speed | 6 – 10 RPM (Single or Dual Speed) |
| Operating Air Pressure | 8 – 10 bar (via air compressor) |
| Motor Power | 0.75 – 1.1 kW |
| Power Supply | 220V (Single Phase) or 380V (Three Phase) |
| Noise Level | < 70 dB |
| Net Weight | Approx. 250 – 300 kg (depending on model) |
Key Features:
- Built-in Pneumatic Assist Arm:
Helps to press the tyre bead safely into position during mounting/demounting. - Heavy-Duty Bead Breaker:
Side-mounted with reinforced cylinder – ideal for stiff sidewalls in RFTs. - No Rim Damage Guarantee:
Alloy rim protectors and plastic head covers prevent scratches and damage. - Self-Centering Turntable:
Smooth clamping and rotation for all tyre types – tubeless, RFT, low profile. - Foot Pedal Controls:
Hands-free operation with powerful yet precise foot pedal system. - Rugged Body Structure:
Suitable for high workload environments like tyre shops and dealerships.
Ideal For:
- Premium Car Workshops
- Tyre Dealers & Wheel Alignment Shops
- Service Centers for BMW, Audi, Mercedes, etc.
- High-Speed or Sports Vehicle Garages
