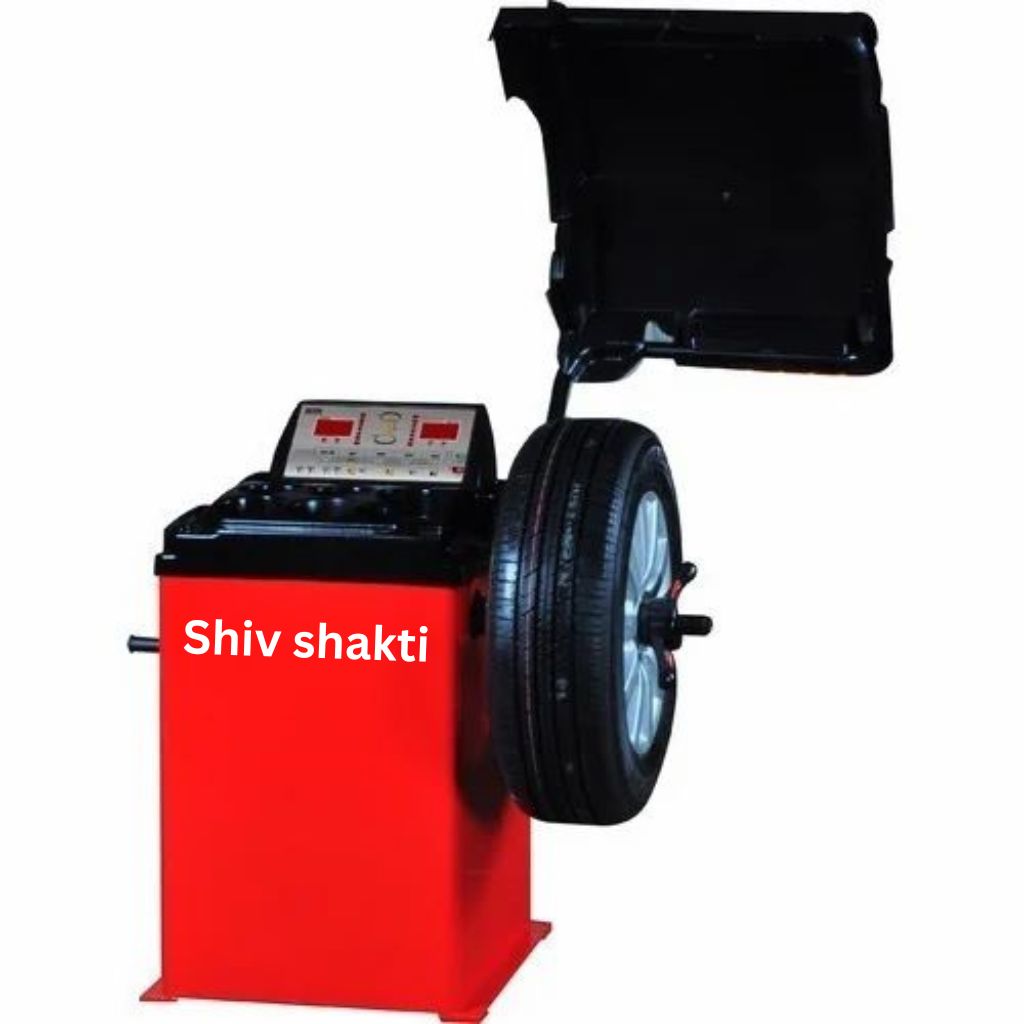

Digital Wheel Balancer
Our Digital Wheel Balancer is designed for precision, speed, and ease of use. With automatic data entry and advanced balancing software, it ensures smooth drive performance, reduces tyre wear, and saves technician time. Ideal for cars, SUVs, and light commercial vehicles.
Technical Specifications:
| Feature | Specification |
|---|---|
| Rim Diameter Range | 10″ – 24″ |
| Rim Width Range | 1.5″ – 20″ |
| Maximum Wheel Weight | Up to 70 kg |
| Max Wheel Diameter | 800 – 950 mm (varies by model) |
| Balancing Accuracy | ±1 gram |
| Balancing Speed | 200 RPM – 250 RPM |
| Cycle Time | 7 – 10 seconds |
| Display Type | Digital LED / LCD Screen |
| Data Entry | Manual / Semi-Automatic (depending on model) |
| Power Supply | 220V, Single Phase, 50Hz |
| Motor Power | 0.25 – 0.37 kW |
| Noise Level | < 70 dB |
| Machine Weight | 80 – 120 kg (depending on configuration) |
Key Features:
- Digital Display Panel:
Easy-to-read screen shows exact imbalance points and weight position. - Static and Dynamic Balancing Modes:
Handles all wheel types including steel, alloy, tubeless. - Self-Diagnosis Function:
Auto error detection and calibration for accurate performance. - Multiple Balancing Programs:
- Normal
- ALU (for alloy wheels)
- Motorcycle wheel (optional)
- Hidden/Split weight function
- High-Precision Sensors:
For accurate imbalance detection and reliable results every time. - Quick Release Clamping Mechanism:
For fast loading/unloading of wheels.
Ideal For:
- Car & SUV Tyre Shops
- Service Stations & Workshops
- Multi-brand Tyre Dealers
- OEM Car Service Centers
Optional Accessories:
- Motorcycle Wheel Adapter Kit
- Cone Set for LCV / SUV wheels
- Protective Wheel Guard Cover
- Laser Weight Position Indicator (in advanced models)

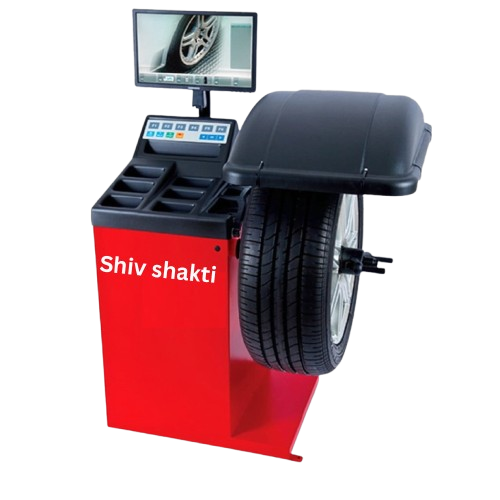

3D Wheel Balancer
The 3D Wheel Balancer is a next-generation machine equipped with 3D laser sensors, automatic data entry, and advanced software for high-precision and contactless wheel balancing. Perfect for alloy wheels, run-flat tyres, and premium vehicles, this machine delivers fast and flawless results with minimal human effort.
Technical Specifications:
| Feature | Specification |
|---|---|
| Rim Diameter Range | 10″ – 30″ |
| Rim Width Range | 1.5″ – 20″ |
| Maximum Wheel Diameter | Up to 1100 mm (43″) |
| Maximum Wheel Weight | Up to 80 kg |
| Balancing Accuracy | ±1 gram |
| Balancing Speed | 200 – 250 RPM |
| Cycle Time | 6 – 10 seconds |
| Display Type | TFT/LCD Touchscreen (Typically 17” or larger) |
| Data Entry | Fully Automatic via 3D Laser Sensor Arms |
| Power Supply | 220V Single Phase, 50 Hz |
| Motor Power | 0.25 – 0.37 kW |
| Machine Weight | Approx. 120 – 150 kg (depends on model) |
Key Features:
- 3D Laser Measurement Arms:
Automatically detects rim diameter, width, and offset – no manual input needed. - Laser Weight Positioning:
Laser guide shows the exact spot on the rim to place the weight – no guesswork. - Touchscreen Display:
User-friendly interface with live graphics, step-by-step process, and quick training. - High-Precision Sensors:
Ensures accurate balancing even for high-speed tyres and luxury vehicles. - Split Weight / Hidden Weight Mode:
Ideal for alloy rims where aesthetic matters. - Multiple Balancing Programs:
- Normal (Steel Wheel)
- ALU (Alloy Wheel)
- Static / Dynamic
- Motorcycle Mode (optional)
- Self-Diagnosis & Auto Calibration:
Keeps machine accurate over time without technician intervention.
Ideal For:
- Premium Car Service Centers
- High-Volume Tyre Shops
- Alloy Wheel Dealers
- OEM Authorised Workshops
Optional Features:
- Laser Line or LED Position Indicator
- Protective Wheel Guard Hood
- Automatic Wheel Lifter
- LCV/Truck Cone Adapter Set
- Motorcycle Balancing Kit
